FBSA205/DF軸承
更新日期：2025/11/1簡介: SKF軸承FBSA205/DF 類型為角接觸推力球軸承 for screw drives, cartridge units with flanged housing， 內徑為:25mm外徑為:80mm厚度為:52mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF FBSA205/DF軸承 游隙尺寸,游隙尺寸表,滾子粒數,FBSA205/DF報價,價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

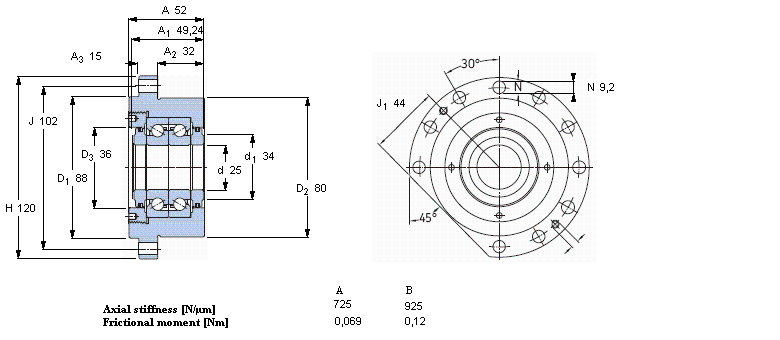

角接觸推力球軸承 for screw drives, cartridge units with flanged housingFBSA205/DF軸承 樣本圖紙
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 25 | 80 | 52 | 22,4 | 52 | 1,93 | 7200 | 3600 | 2,3 | FBSA 205/ DF | BSDU 225 FF | |
