BEAM060145-2RS軸承
更新日期：2025/10/31簡介: SKF軸承BEAM060145-2RS 類型為角接觸推力球軸承 for screw drives, double direction, for bolt mounting， 內徑為:60mm外徑為:145mm厚度為:45mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF BEAM060145-2RS軸承 代號,BEAM060145-2RS基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

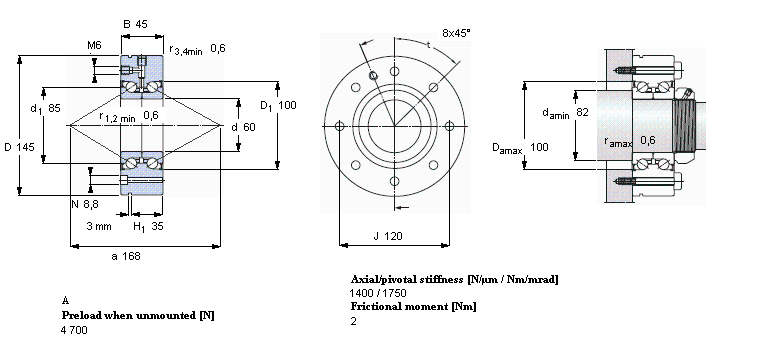

角接觸推力球軸承 for screw drives, double direction, for bolt mountingBEAM060145-2RS軸承 樣本圖紙
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 60 | 145 | 45 | 85,2 | 216 | 8 | 1600 | 4,30 | BEAM 060145-2RS | BEAM 60/145/C 7P60 | |
