SYNT65FW軸承
更新日期：2025/11/1簡介: SKF軸承SYNT65FW 類型為滾子軸承立式軸承座單元, SKF ConCentra, locating units, relubrication-free (double-lip seals)， 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF SYNT65FW軸承 配合安裝尺寸,基本尺寸,滾子粒數,SYNT65FW價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

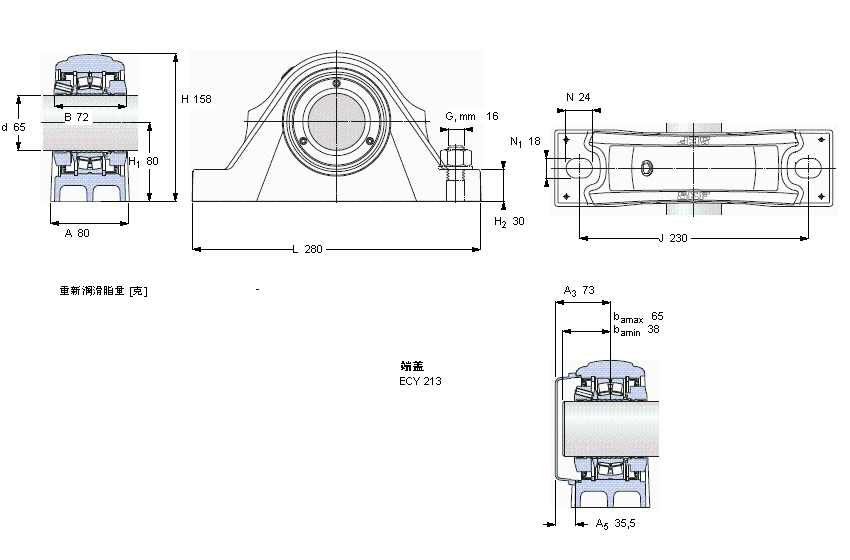

滾子軸承立式軸承座單元, SKF ConCentra, locating units, relubrication-free (double-lip seals)SYNT65FW軸承 樣本圖紙
| 滾子軸承立式軸承座單元, SKF ConCentra, locating units, relubrication-free (double-lip seals) | ||||||||||||
|
||||||||||||
| 尺寸 | 尺寸 [英寸] | 疲勞負荷限值 | 限制速度 | 體積 | 型號 | 軸承,基本型號 | ||||||
| 動態 | 靜態 | |||||||||||
| da | A | H | H1 | L | C | C0 | Pu | |||||
|
|
||||||||||||
| mm | kN | kN | r/min | kg | - | - | ||||||
|
|
||||||||||||
| 65 | 80 | 158 | 80 | 280 | 193 | 216 | 24 | 2700 | 8,7 | SYNT 65 FW | 22213 E | |
