SYNT55LW軸承
更新日期：2025/11/1簡介: SKF軸承SYNT55LW 類型為滾子軸承立式軸承座單元, SKF ConCentra, non-locating units, relubrication-free (double-lip seals)， 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF SYNT55LW軸承 配合安裝尺寸,基本尺寸,滾子粒數,SYNT55LW價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

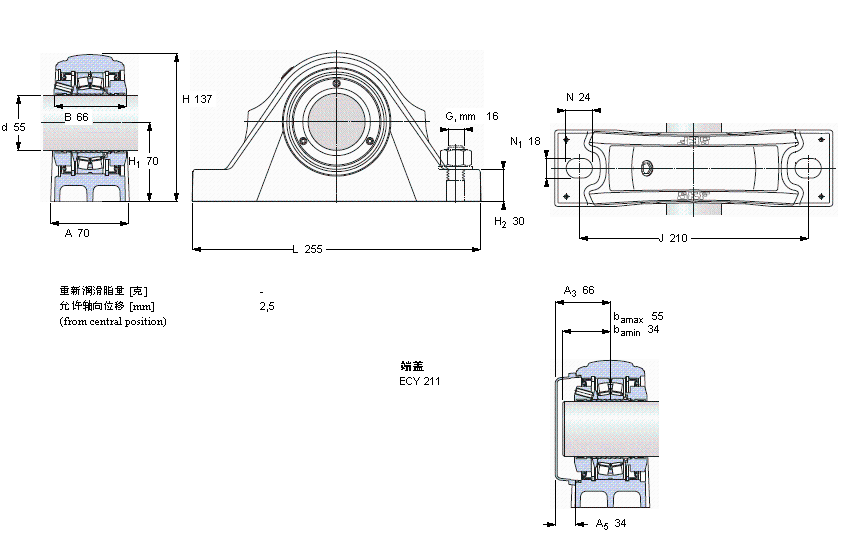

滾子軸承立式軸承座單元, SKF ConCentra, non-locating units, relubrication-free (double-lip seals)SYNT55LW軸承 樣本圖紙
| 滾子軸承立式軸承座單元, SKF ConCentra, non-locating units, relubrication-free (double-lip seals) | ||||||||||||
|
||||||||||||
| 尺寸 | 尺寸 [英寸] | 疲勞負荷限值 | 限制速度 | 體積 | 型號 | 軸承,基本型號 | ||||||
| 動態 | 靜態 | |||||||||||
| da | A | H | H1 | L | C | C0 | Pu | |||||
|
|
||||||||||||
| mm | kN | kN | r/min | kg | - | - | ||||||
|
|
||||||||||||
| 55 | 70 | 137 | 70 | 255 | 125 | 127 | 13,7 | 3100 | 6 | SYNT 55 LW | 22211 E | |
