BSD4575CG軸承
更新日期：2025/10/29簡介: SKF軸承BSD4575CG 類型為角接觸推力球軸承 for screw drives, single direction， 內徑為:45mm外徑為:75mm厚度為:15mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF BSD4575CG軸承 配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,BSD4575CG極限轉速,游隙, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

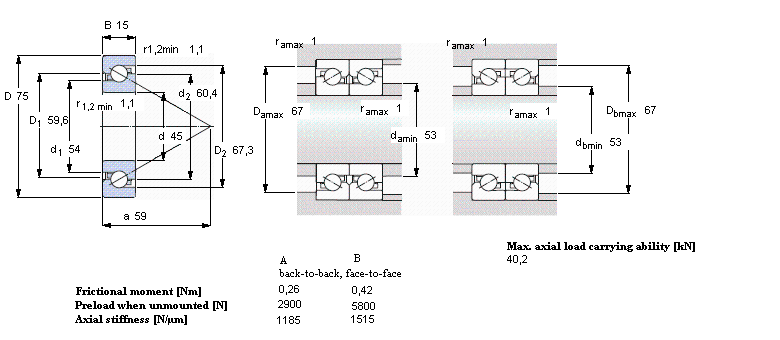

角接觸推力球軸承 for screw drives, single directionBSD4575CG軸承 樣本圖紙
| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 75 | 15 | 32,5 | 98 | 3,65 | 7500 | 9000 | 0,26 | BSD 4575 CG | BS 45/75 7P62U | |
