6203/HR11TN軸承
更新日期：2025/10/31簡介: SKF軸承6203/HR11TN 類型為聚合物球軸承,單列球軸承, POM/POM/stainless steel/PA66， 內徑為:17mm外徑為:40mm厚度為:12mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 6203/HR11TN軸承 游隙尺寸,游隙尺寸表,滾子粒數,6203/HR11TN報價,價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

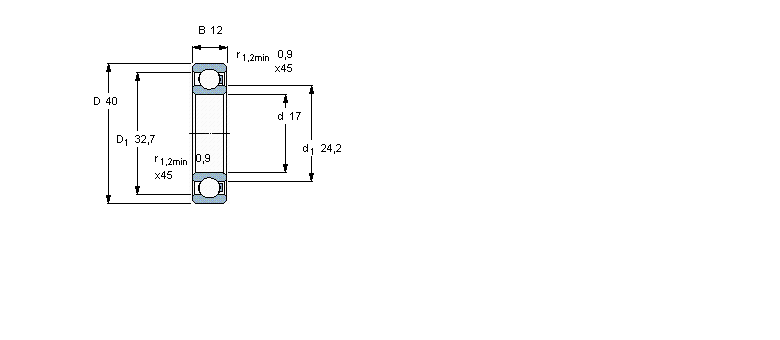

聚合物球軸承,單列球軸承, POM/POM/stainless steel/PA666203/HR11TN軸承 樣本圖紙
| 聚合物球軸承,單列球軸承, POM/POM/stainless steel/PA66 | ||||||||
|
||||||||
| 主要數據尺寸 | 負荷能力 | 額定速度 | 體積 | 型號 | ||||
| d | D | B | 動態 1) | 靜態 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 17 | 40 | 12 | 0,32 | 0,22 | 1250 | 0,019 | 6203/HR11TN | |
