SYNT75LW軸承
更新日期：2025/11/2簡介: SKF軸承SYNT75LW 類型為滾子軸承立式軸承座單元, SKF ConCentra, non-locating units, relubrication-free (double-lip seals)， 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF SYNT75LW軸承 配合安裝尺寸,基本尺寸,滾子粒數,SYNT75LW價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

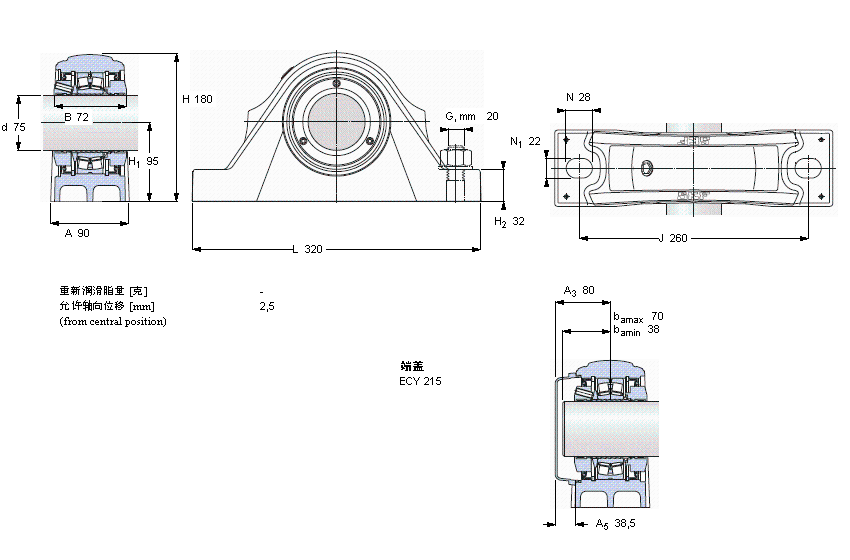

滾子軸承立式軸承座單元, SKF ConCentra, non-locating units, relubrication-free (double-lip seals)SYNT75LW軸承 樣本圖紙
| 滾子軸承立式軸承座單元, SKF ConCentra, non-locating units, relubrication-free (double-lip seals) | ||||||||||||
|
||||||||||||
| 尺寸 | 尺寸 [英寸] | 疲勞負荷限值 | 限制速度 | 體積 | 型號 | 軸承,基本型號 | ||||||
| 動態 | 靜態 | |||||||||||
| da | A | H | H1 | L | C | C0 | Pu | |||||
|
|
||||||||||||
| mm | kN | kN | r/min | kg | - | - | ||||||
|
|
||||||||||||
| 75 | 90 | 180 | 95 | 320 | 212 | 240 | 26,5 | 2500 | 12 | SYNT 75 LW | 22215 E | |
