S7012ACD/P4A軸承
更新日期：2025/11/2簡介: SKF軸承S7012ACD/P4A 類型為角接觸球軸承, 精密, S .. ACD, sealed, contact angle 25°， 內徑為:60mm外徑為:95mm厚度為:18mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF S7012ACD/P4A軸承 游隙尺寸,游隙尺寸表,滾子粒數,S7012ACD/P4A報價,價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

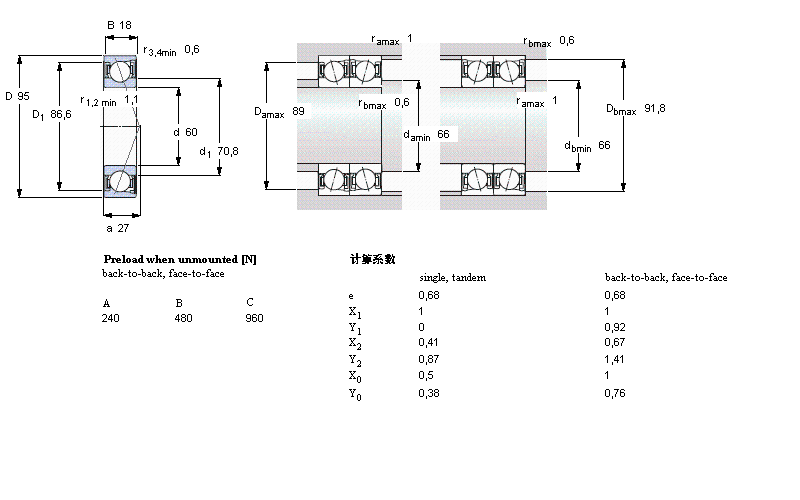

角接觸球軸承, 精密, S .. ACD, sealed, contact angle 25°S7012ACD/P4A軸承 樣本圖紙
| 角接觸球軸承, 精密, S .. ACD, sealed, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 60 | 95 | 18 | 39 | 33,5 | 1,4 | 13000 | - | 0,4 | S7012 ACD/P4A | - | |
