FBSA212A/QFC軸承
更新日期：2025/10/31簡介: SKF軸承FBSA212A/QFC 類型為角接觸推力球軸承 for screw drives, cartridge units with flanged housing， 內徑為:60mm外徑為:145mm厚度為:114mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF FBSA212A/QFC軸承 配合安裝尺寸,基本尺寸,滾子粒數,FBSA212A/QFC價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

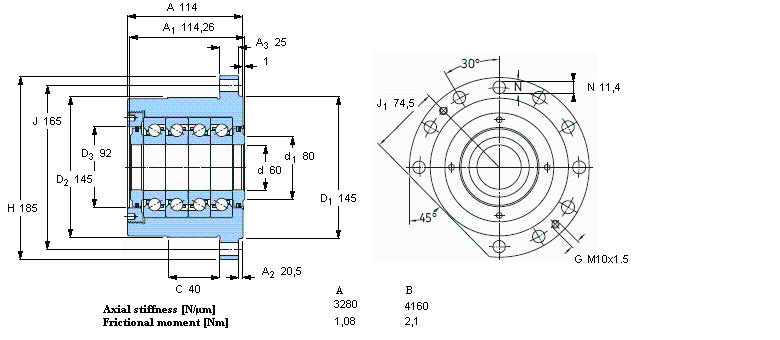

角接觸推力球軸承 for screw drives, cartridge units with flanged housingFBSA212A/QFC軸承 樣本圖紙
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 60 | 145 | 114 | 113,285 | 432 | 16 | 2500 | 1250 | 12,3 | FBSA 212 A/ QFC | BSQU 260/1 TFT | |
