71922ACD/P4A軸承
更新日期：2025/11/2簡介: SKF軸承71922ACD/P4A 類型為角接觸球軸承, 精密, ACD, contact angle 25°， 內徑為:110mm外徑為:150mm厚度為:20mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 71922ACD/P4A軸承 配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,71922ACD/P4A極限轉速,游隙, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

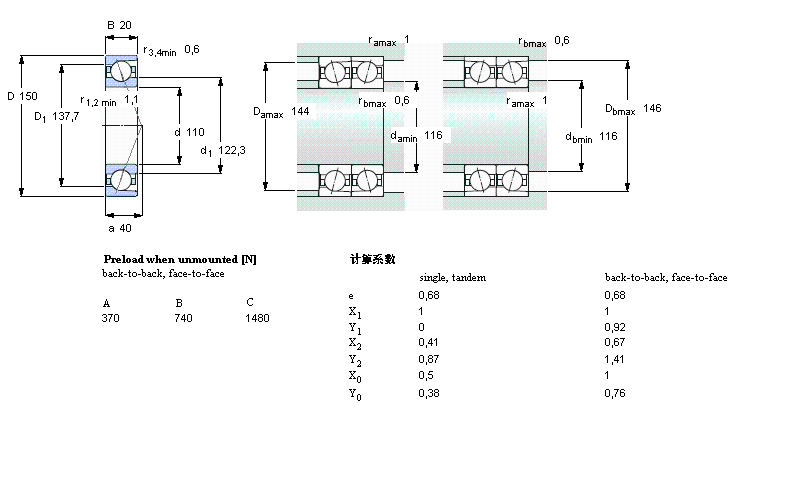

角接觸球軸承, 精密, ACD, contact angle 25°71922ACD/P4A軸承 樣本圖紙
| 角接觸球軸承, 精密, ACD, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 110 | 150 | 20 | 58,5 | 68 | 2,55 | 7500 | 12000 | 0,86 | 71922 ACD/P4A | - | |
