6206/HR11QN軸承
更新日期：2025/11/1簡介: SKF軸承6206/HR11QN 類型為聚合物球軸承,單列球軸承, POM/POM/glass/PA66， 內徑為:30mm外徑為:62mm厚度為:16mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 6206/HR11QN軸承 配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,6206/HR11QN極限轉速,游隙, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

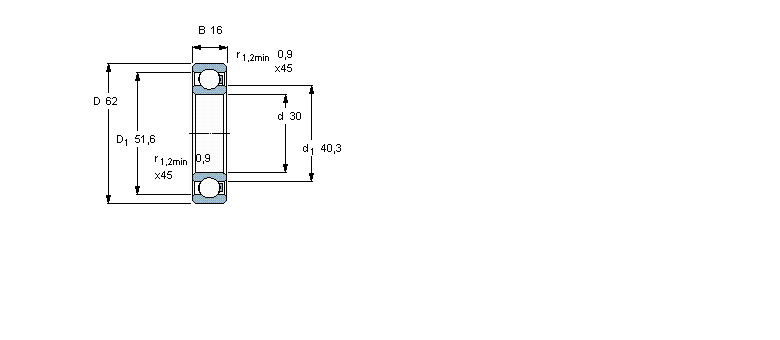

聚合物球軸承,單列球軸承, POM/POM/glass/PA666206/HR11QN軸承 樣本圖紙
| 聚合物球軸承,單列球軸承, POM/POM/glass/PA66 | ||||||||
|
||||||||
| 主要數據尺寸 | 負荷能力 | 額定速度 | 體積 | 型號 | ||||
| d | D | B | 動態 1) | 靜態 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 30 | 62 | 16 | 0,55 | 0,36 | 800 | 0,063 | 6206/HR11QN | |
