51202V/HR11T1軸承
更新日期：2025/11/1簡介: SKF軸承51202V/HR11T1 類型為聚合物球軸承,推力球軸承, POM/POM/stainless steel/POM， 內徑為:15mm外徑為:32mm厚度為:12mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 51202V/HR11T1軸承 代號,51202V/HR11T1基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

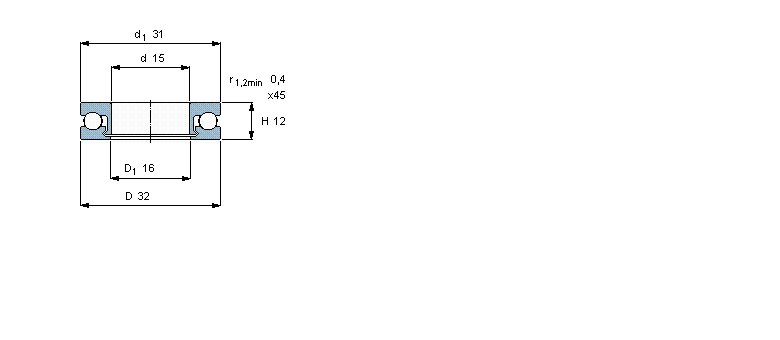

聚合物球軸承,推力球軸承, POM/POM/stainless steel/POM51202V/HR11T1軸承 樣本圖紙
| 聚合物球軸承,推力球軸承, POM/POM/stainless steel/POM | ||||||||
|
||||||||
| 主要數據尺寸 | 負荷能力 | 額定速度 | 體積 | 型號 | ||||
| d | D | B | 動態 1) | 靜態 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 15 | 32 | 12 | 0,65 | 0,52 | 500 | 0,012 | 51202 V/HR11T1 | |
