231/670CAK/W33+OH31/670H軸承
更新日期：2025/11/1簡介: SKF軸承231/670CAK/W33+OH31/670H 類型為球面滾子軸承, 帶緊定套的， 內徑為:630mm外徑為:1090mm厚度為:336mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 231/670CAK/W33+OH31/670H軸承 配合安裝尺寸,基本尺寸,滾子粒數,231/670CAK/W33+OH31/670H價格,外形尺寸,錐度, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

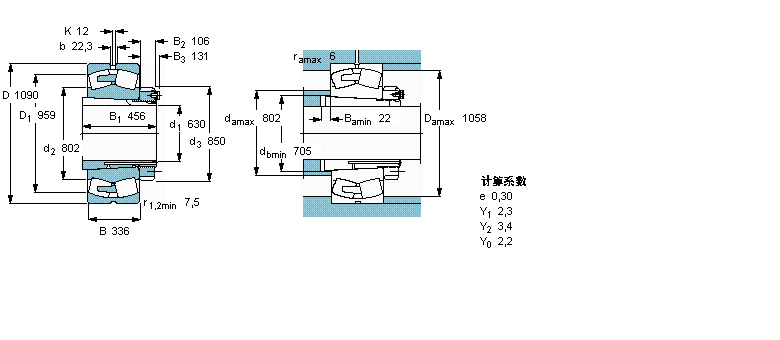

球面滾子軸承, 帶緊定套的231/670CAK/W33+OH31/670H軸承 樣本圖紙
| 球面滾子軸承, 帶緊定套的 | ||||||||||
| 公差 , 參見文字 | ||||||||||
| 徑向內部游隙 , 參見文字 | ||||||||||
| 推薦配合 | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 額定速度 | 體積 | 型號 | |||||
| 動態 | 靜態 | 參照速度 | 限制速度 | 軸承 + 緊定套 | ||||||
| d1 | D | B | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 630 | 1090 | 336 | 10900 | 22400 | 1370 | 240 | 500 | 1510 | 231/670 CAK/W33 + OH 31/670 H | |
