230/1060CAK/W33+OH30/1060H軸承
更新日期：2025/11/1簡介: SKF軸承230/1060CAK/W33+OH30/1060H 類型為球面滾子軸承, 帶緊定套的， 內徑為:1000mm外徑為:1500mm厚度為:325mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 230/1060CAK/W33+OH30/1060H軸承 代號,230/1060CAK/W33+OH30/1060H基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

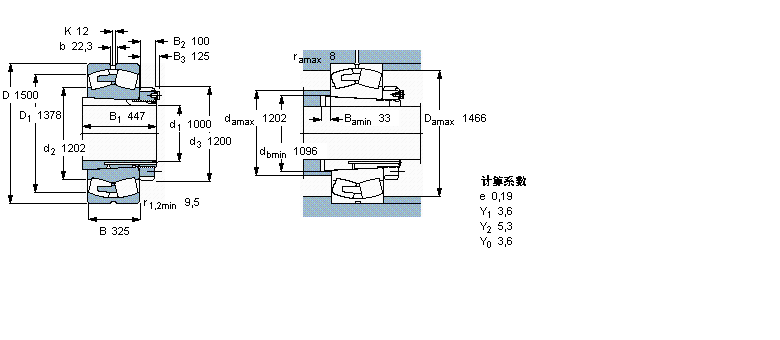

球面滾子軸承, 帶緊定套的230/1060CAK/W33+OH30/1060H軸承 樣本圖紙
| 球面滾子軸承, 帶緊定套的 | ||||||||||
| 公差 , 參見文字 | ||||||||||
| 徑向內部游隙 , 參見文字 | ||||||||||
| 推薦配合 | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 額定速度 | 體積 | 型號 | |||||
| 動態 | 靜態 | 參照速度 | 限制速度 | 軸承 + 緊定套 | ||||||
| d1 | D | B | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 1000 | 1500 | 325 | 13800 | 34000 | 1830 | 170 | 320 | 2800 | 230/1060 CAK/W33 + OH 30/1060 H | |
